| SPECIFICATIONS |
| |
| General |
| Model |

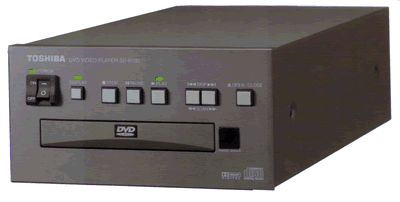

SD-B100 |
| Disc |
DVD,
CD, Video CD |
| Video
Format |
NTSC,
PAL |
| Dimensions |
212
(W) x 400(D) x 114(H)mm/8.35(W)x15.75(D)x4.49 (H) inches |
| Power |
AC
100–240V, 25 watts |
| Output |
| Video |
1Vp-p
/ 75 ohms BNCx1, RCA x 1 |
| S-Video |
Y:1Vp-p,
C: 0.286Vp-p / 75 ohms DIN mini4 pin x 1 |
| Audio |
200mV
rms, L/R, RCA x 2 |
| External
sync (Optional, functions only on DVD, not CD video) |
| Composite
sync input |
1
to 4Vp-p(10k / 75 ohms) BNC x 1 |
| Sync
loop through |
BNC
x 1 |
| Extenal
control |
| Serial
remote (RS-232C) |
1200/2400/9600/38400bps,
D-sub 9 pin x 2 (In/out)
Three set of command protocols available
Daisy chaining possible by internal switch (up to 31 sets) |
| "Parallel"
remote |
D-sub
15 pin |
| Infrared
remote |
Transmitter
provided |
